Spherical Roller Bearings

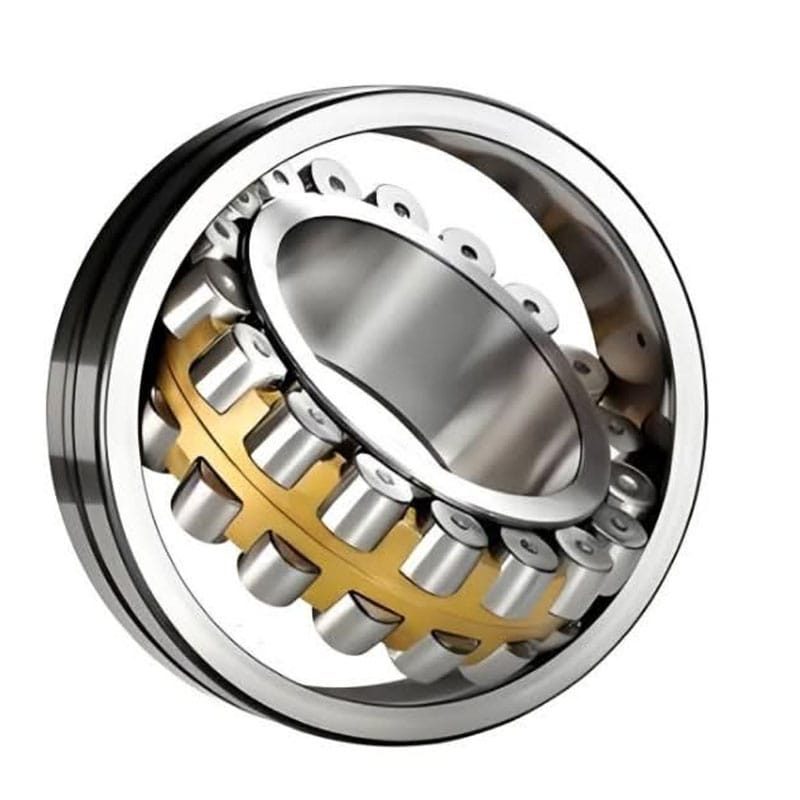

spherical roller bearing-1

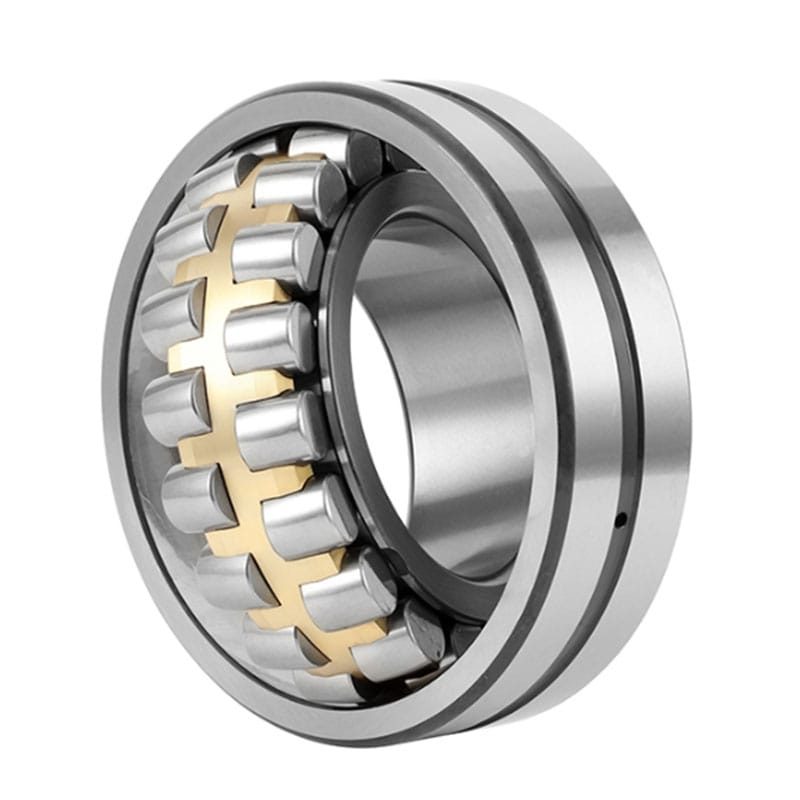

spherical-roller-bearing-2

Bearing Overview

Spherical roller bearings are designed to carry very heavy radial loads and moderate axial loads in both directions under harsh operating conditions. They feature two rows of barrel-shaped rollers working on a common spherical outer raceway, which enables automatic self-alignment and allows the bearing to compensate for shaft misalignment, deflection, and mounting errors.

Thanks to their robust internal structure and high load distribution capability, spherical roller bearings perform reliably even in applications with severe shock loads, vibration, and poor lubrication conditions. They are widely used in mining machinery, paper machines, gearboxes, steel mills, crushers, and other heavy-duty industrial equipment where durability and reliability are critical.

CONTACT US

Key Features

  • Extremely high radial load carrying capacity
  • Capable of handling moderate axial loads in both directions
  • Self-aligning design compensates for shaft misalignment
  • Excellent shock and vibration resistance
  • Suitable for harsh and contaminated environments
  • Available with brass cage and steel cage options
  • Tapered bore design available for easy mounting (K type)
  • Long service life under heavy-duty operation

Bearing Types

Spherical roller bearings are available in different internal designs and mounting options to meet various industrial requirements:

CA Type

  • Machined brass cage
  • High strength and excellent durability
  • Suitable for heavy shock load conditions

CC Type

  • Pressed steel cage or optimized design structure
  • Lower friction and stable operation
  • Suitable for high-speed heavy-load applications

E Type (if applicable in product line)

  • Enhanced load capacity design
  • Improved roller geometry for higher performance

Bore Type

  • Cylindrical bore: Standard mounting
  • Tapered bore (K type): Easier mounting and dismounting with adapter sleeve

… Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.

Applications

Spherical roller bearings are widely used in heavy-duty industries where high load capacity and reliability are required.

  • Mining machinery
  • Steel mills and metallurgical equipment
  • Paper manufacturing machines
  • Crushers and vibrating screens
  • Gearboxes and reducers
  • Conveyors and heavy transport systems
  • Construction machinery
  • Marine and offshore equipment
  • Wind power equipment
  • Industrial pumps and compressors

Technical Specifications

ItemAvailable Options
StructureDouble Row Spherical Roller Bearing
SeriesCA / CC / E Type
Bore TypeCylindrical / Tapered (K Type)
Cage MaterialBrass / Steel
ClearanceCN / C3 / C4 / C5
SealingOpen Type / Sealed Type (optional)
LubricationGrease or Oil
MaterialHigh Carbon Chromium Bearing Steel

Dimensions Table

Please refer to the table below for detailed dimensions and specifications of each series and model.

Many additional bearing models and customized solutions are available. If you have specific requirements, please feel free to contact us for technical support and selection guidance.

Model NO. Dimensions(mm) Model NO. Dimensions(mm)
21304 20*52*15 22240 200*360*98
21305 25*62*17 22244 220*400*108
21306 30*72*19 22248 240*440*120
21307 35*80*21 22252 260*480*130
21308 40*90*23 22256 280*500*130
21309 45*100*25 22260 300*540*140
21310 50*110*27 22264 320*580*150
21311 55*120*29 22268 340*620*165
21312 60*130*31 22272 360*650*170
21313 65*140*33 22307 35*80*31
21314 70*150*35 22308 40*90*33
21315 75*160*37 22309 45*100*36
21316 80*170*39 22310 50*110*40
21317 85*180*41 22311 55*120*43
21318 90*190*43 22312 60*130*46
21319 95*200*45 22313 65*140*48
21320 100*215*47 22314 70*150*51
21321 105*225*49 22315 75*160*55
21322 110*240*50 22316 80*170*58
22205 25*52*18 22317 85*180*60
22206 30*62*20 22318 90*190*64
22207 35*72*23 22319 95*200*67
22208 40*80*23 22320 100*215*73
22209 45*85*23 22322 110*240*80
22210 50*90*23 22324 120*260*86
22211 55*100*25 22326 130*280*93
22212 60*110*28 22328 140*300*102
22213 65*120*31 22330 150*320*108
22214 70*125*31 22332 160*340*114
22215 75*130*31 22334 170*360*120
22216 80*140*33 22336 180*380*126
22217 85*150*36 22338 190*400*132
22218 90*160*40 22340 200*420*138
22219 95*170*43 22344 220*460*145
22220 100*180*46 22348 240*500*155
22222 110*200*53 22352 260*540*165
22224 120*215*58 22356 280*580*175
22226 130*230*64 22360 300*620*185
22228 140*250*68 22364 320*670*200
22230 150*270*73 22368 340*710*212
22232 160*290*80 22372 360*750*224
22234 170*310*86 22376 380*780*230
22236 180*320*86 22380 400*820*243
22238 190*340*92
Model NO. Dimensions(mm) Model NO. Dimensions(mm)
23020 100*150*37 23230 150*270*96
23022 110*170*45 23232 160*290*104
23024 120*180*46 23234 170*310*110
23026 130*200*52 23236 180*320*112
23028 140*210*53 23238 190*340*120
23030 150*225*56 23240 200*360*128
23032 160*240*60 23244 220*400*144
23034 170*260*67 23248 240*440*160
23036 180*280*74 23252 260*480*174
23038 190*290*75 23256 280*500*176
23040 200*310*82 23260 300*540*192
23044 220*340*90 23264 320*580*208
23048 240*360*92 23268 340*620*224
23052 260*400*104 23272 360*650*232
23056 280*420*106 23276 380*680*240
23060 300*460*118 23280 400*720*256
23064 320*480*121 23284 420*760*272
23068 340*520*133 23288 440*790*280
23072 360*540*134 23292 460*830*296
23076 380*560*135 23296 480*870*310
23080 400*600*148 232/500 500*920*336
23084 420*620*150 232/530 530*980*355
23088 440*650*157 232/560 560*1030*365
23092 460*680*163 232/600 600*1090*388
23096 480*700*165 232/630 630*1150*412
230/500 500*720*167 232/670 670*1220*438
230/530 530*780*185 232/710 710*1280*450
230/560 560*820*195 232/750 750*1360*475
230/600 600*870*200 23856 280*350*52
230/630 630*920*212 23860 300*380*60
230/670 670*980*230 23864 320*400*60
230/710 710*1030*236 23868 340*420*60
230/750 750*1090*250 23872 360*440*60
230/800 800*1150*258 23876 380*480*75
230/850 850*1220*272 23880 400*500*75
230/900 900*1280*280 23884 420*520*75
230/950 950*1360*300 23888 440*540*75
230/1000 1000*1420*308 23892 460*580*90
230/1060 1060*1500*325 23896 480*600*90
230/1120 1120*1580*345 238/500 500*620*90
230/1180 1180*1660*355 238/530 530*650*90
230/1250 1250*1750*375 238/560 560*680*90
23120 100*165*52 238/600 600*730*98
23122 110*180*56 238/630 630*780*112
23124 120*200*62 238/670 670*820*112
23126 130*210*64 238/710 710*870*118
23128 140*225*68 238/750 750*920*128
23130 150*250*80 238/800 800*980*136
23132 160*270*86 238/850 850*1030*136
23134 170*280*88 238/900 900*1090*140
23136 180*300*96 238/950 950*1150*150
23138 190*320*104 238/1000 1000*1220*165
23140 200*340*112 238/1060 1060*1280*165
23144 220*370*120 238/1120 1120*1360*180
23148 240*400*128 238/1180 1180*1420*180
23152 260*440*144 23936 180*250*52
23156 280*460*146 23938 190*260*52
23160 300*500*160 23940 200*280*60
23164 320*540*176 23944 220*300*60
23168 340*580*190 23948 240*320*60
23172 360*600*192 23952 260*360*75
23176 380*620*194 23956 280*380*75
23180 400*650*200 23960 300*420*90
23184 420*700*224 23964 320*440*90
23188 440*720*226 23968 340*460*90
23192 460*760*240 23972 360*480*90
23196 480*790*248 23976 380*520*106
231/500 500*830*264 23980 400*540*106
231/530 530*870*272 23984 420*560*106
231/560 560*920*280 23988 440*600*118
231/600 600*980*300 23992 460*620*118
231/630 630*1030*315 23996 480*650*128
231/670 670*1090*336 239/500 500*670*128
231/710 710*1150*345 239/530 530*710*136
231/750 750*1220*365 239/560 560*750*140
231/800 800*1280*375 239/600 600*800*150
231/850 850*1360*400 239/630 630*850*165
231/900 900*1420*412 239/670 670*900*170
231/950 950*1500*438 239/710 710*950*180
231/1000 1000*1580*462 239/750 750*1000*185
23216 80*140*44.4 239/800 800*1060*195
23217 85*150*49.2 239/850 850*1120*200
23218 90*160*52.4 239/900 900*1180*206
23219 95*170*55.6 239/950 950*1250*224
23220 100*180*60.3 239/1000 1000*1320*236
23222 110*200*69.8 239/1060 1060*1400*250
23224 120*215*76 239/1120 1120*1460*250
23226 130*230*80 239/1180 1180*1540*272
23228 140*250*88
Model NO. Dimensions(mm) Model NO. Dimensions(mm)
24015 75*115*40 24160 300*500*200
24016 80*125*45 24164 320*540*218
24017 85*130*45 24168 340*580*243
24018 90*140*50 24172 360*600*243
24020 100*150*50 24176 380*620*243
24022 110*170*60 24180 400*650*250
24024 120*180*60 24184 420*700*280
24026 130*200*69 24188 440*720*280
24028 140*210*69 24192 460*760*300
24030 150*225*75 24196 480*790*308
24032 160*240*80 241/500 500*830*325
24034 170*260*90 241/530 530*870*335
24036 180*280*100 241/560 560*920*355
24038 190*290*100 241/600 600*980*375
24040 200*310*109 241/630 630*1030*400
24044 220*340*118 241/670 670*1090*412
24048 240*360*118 241/710 710*1150*438
24052 260*400*140 241/750 750*1220*475
24056 280*420*140 241/800 800*1280*475
24060 300*460*160 241/850 850*1360*500
24064 320*480*160 241/900 900*1420*515
24068 340*520*180 241/950 950*1500*545
24072 360*540*180 241/1000 1000*1580*580
24076 380*560*180 24892 460*580*118
24080 400*600*200 24896 480*600*118
24084 420*620*200 248/500 500*620*118
24088 440*650*212 248/530 530*650*118
24092 460*680*218 248/560 560*680*118
24096 480*700*218 248/600 600*730*128
240/500 500*720*218 248/630 630*780*150
240/530 530*780*250 248/670 670*820*150
240/560 560*820*258 248/710 710*870*160
240/600 600*870*272 248/750 750*920*170
240/630 630*920*290 248/800 800*980*180
240/670 670*980*308 248/850 850*1030*180
240/710 710*1030*315 248/900 900*1090*190
240/750 750*1090*335 248/950 950*1150*200
240/800 800*1150*345 248/1000 1000*1220*218
240/850 850*1220*365 248/1060 1060*1280*218
240/900 900*1280*375 248/1120 1120*1360*243
240/950 950*1360*412 248/1180 1180*1420*243
240/1000 1000*1420*412 248/1250 1250*1500*250
240/1060 1060*1500*438 248/1320 1320*1600*280
240/1120 1120*1580*462 248/1400 1400*1700*300
24120 100*165*65 248/1500 1500*1820*315
24122 110*180*69 248/1600 1600*1950*345
24124 120*200*80 248/1700 1700*2060*355
24126 130*210*80 248/1800 1800*2180*375
24128 140*225*85 249/710 710*950*243
24130 150*250*100 249/750 750*1000*250
24132 160*270*109 249/800 800*1060*258
24134 170*280*109 249/850 850*1120*272
24136 180*300*118 249/900 900*1180*280
24138 190*320*128 249/950 950*1250*300
24140 200*340*140 249/1000 1000*1320*315
24144 220*370*150 249/1060 1060*1400*335
24148 240*400*160 249/1120 1120*1460*335
24152 260*440*180 249/1180 1180*1540*355
24156 280*460*180 249/1250 1250*1630*375
249/1320 1320*1720*400
249/1400 1400*1820*425
249/1500 1500*1950*450

Q & A

What are spherical roller bearings used for?

Spherical roller bearings are used in heavy-duty applications that involve high radial loads, shock loads, and misalignment conditions, such as mining, steel mills, and paper machinery.

How do spherical roller bearings handle misalignment?

They use a spherical outer raceway that allows the inner ring and rollers to adjust automatically, compensating for shaft misalignment and deflection during operation.

What is the difference between CA and CC type bearings?

CA type uses machined brass cages with higher strength and shock resistance, while CC type uses steel cages with lower friction and better speed performance.

Can spherical roller bearings handle axial loads?

Yes, they can support moderate axial loads in both directions in addition to very high radial loads, but they are primarily designed for radial load applications.

What is the advantage of tapered bore (K type)?

Tapered bore bearings are easier to mount and dismount using adapter sleeves, allowing better fit adjustment and simplified maintenance.
